# Network Information Check

{% hint style="warning" %}
**Please note:** The guide below is based on the terminal’s default configuration settings. If your terminal has custom settings, some steps may vary. If you need any help or have questions, please [Contact Support](https://my.verifone.com/s/supportbyemail) if you require further assistance.
{% endhint %}

{% stepper %}
{% step %}

#### Open App Launcher

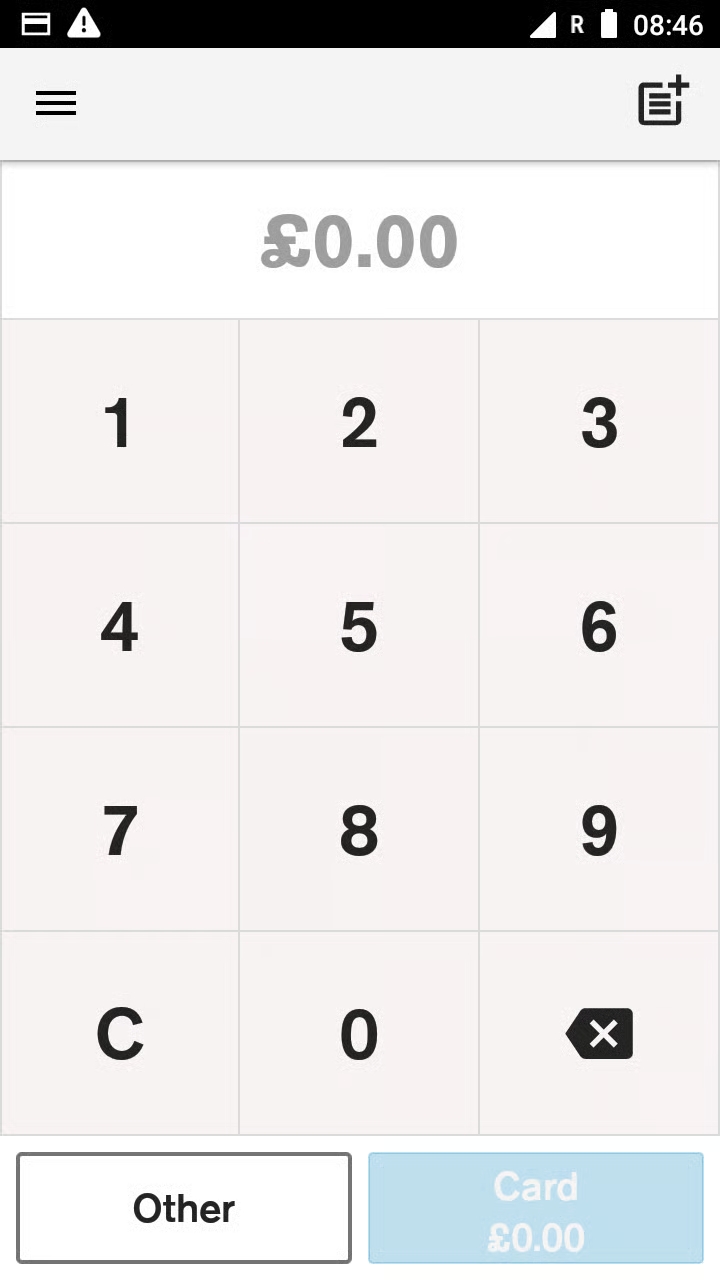

1. Slide down on the payment screen from the top.

   <figure><img src="/files/6VU6ExBJPaHYgD25REec" alt="" width="180"><figcaption></figcaption></figure>

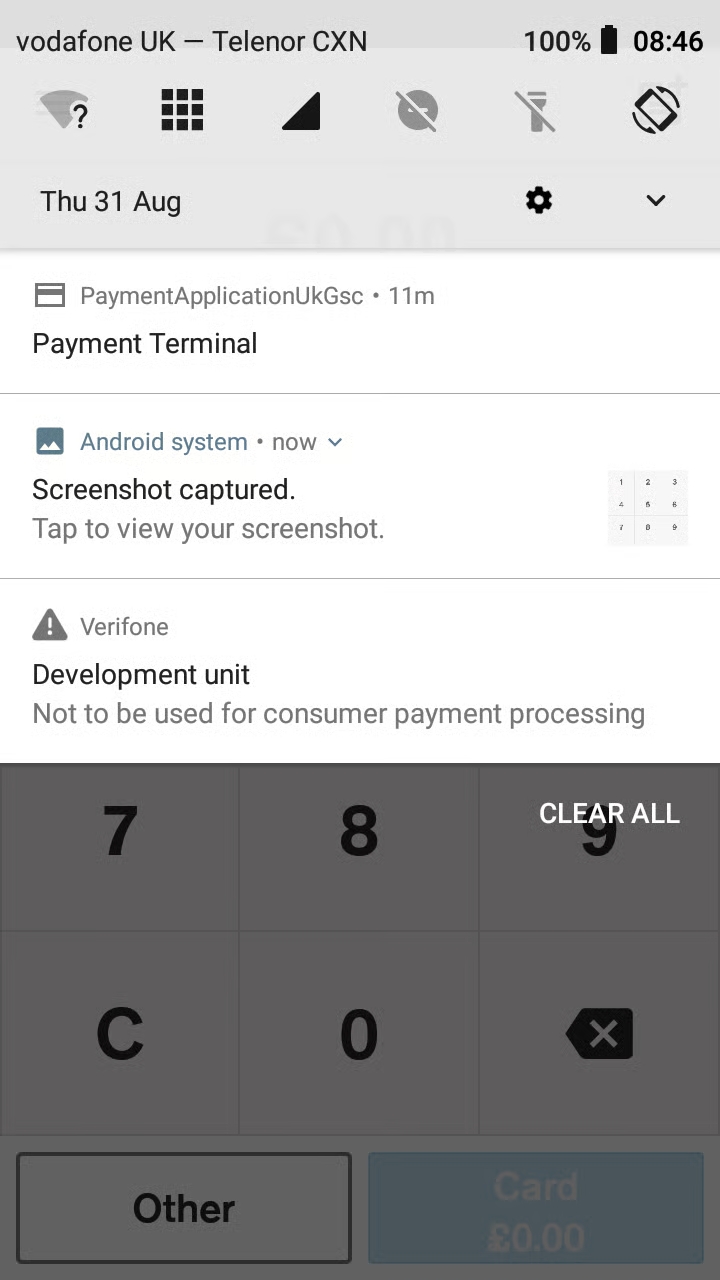

2. Select the 9 box grid symbol at the top next to the Wifi Icon.

   <figure><img src="/files/Y8pHgkHThvoIsQ4DAyga" alt="" width="180"><figcaption></figcaption></figure>

{% endstep %}

{% step %}

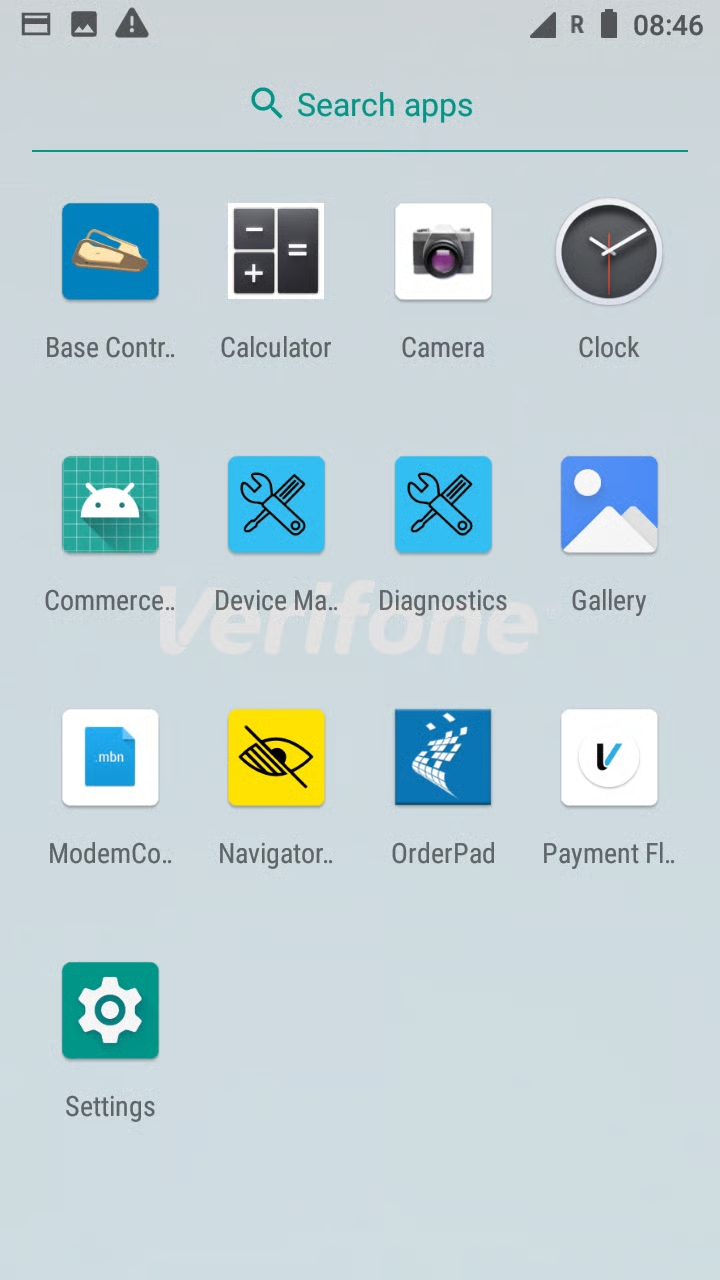

#### **Diagnostics**

Select Diagnostics.

<figure><img src="/files/yJR9jsvU2wjDDWvLz4sE" alt="" width="180"><figcaption></figcaption></figure>

{% endstep %}

{% step %}

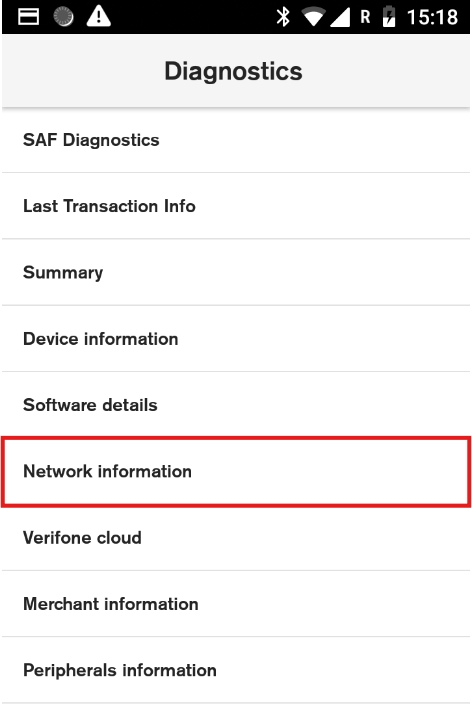

#### Network Information

Select Network Information.

<figure><img src="/files/pggWE5Nh4z1LeND99XCO" alt="" width="236"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

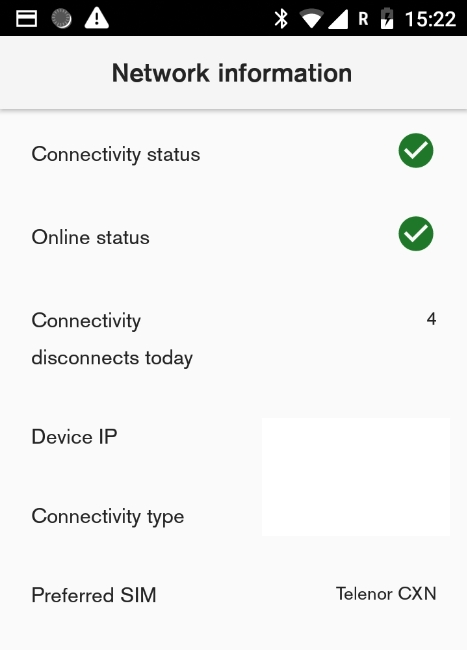

#### View Network Information

You will be able to view network status, Device IP, Connectivity type and Preferred SIM.&#x20;

<figure><img src="/files/7dJeYPFI91STkE1CK6PO" alt="" width="234"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}


---
